lexium 32 cable

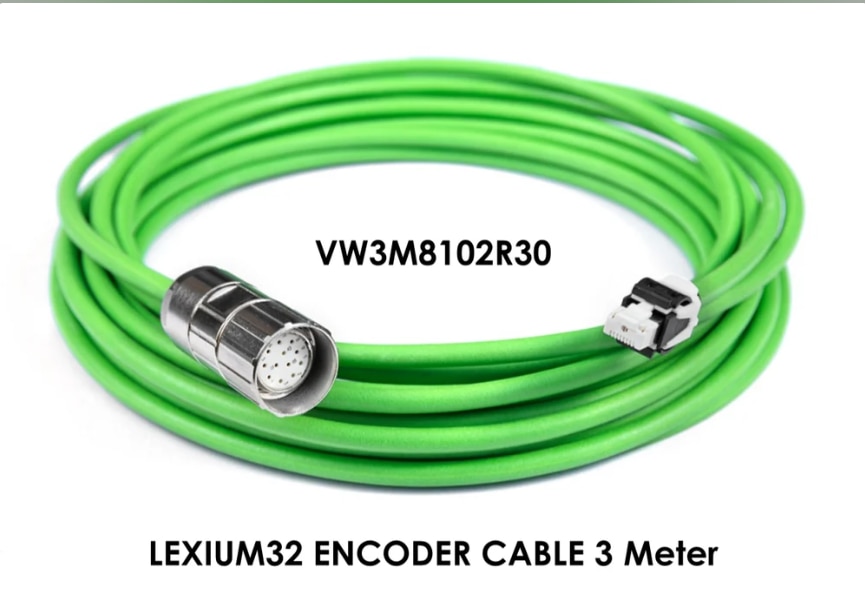

Encoder Cable VW3M8102R30 Cable Length 3 m Conductor Material Copper Protection Type Shielded Usage/Application Industrial Brand SCHNEIDER Part Number VW3M8102R30 Type Encoder Cable Material PUR Size 3x2x0.14 mm2 + 2x0.34 mm2 Color green (RAL 6018) Enoceder Cable for LXM32 & BMH & BSH Motors Signal Cable for LXM32 & BMH & BSH Motors SinCos Hiperface encoder cordsets equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8 + 2 contacts (servo drive end) This product is part of the Lexium range, an offer of motion servo drives and servo motors. This control cable is an accessory of encoder. The length of this cable is 5m. It is furnished with M23 connector, RJ45 connector for electrical connection. The cable composition is 3 x (2 x 0.14mm²) + (2 x 0.34mm²). It is used to connect from servo motor to servo drive. It weighs 0.6kg. This product is compatible with Lexium 32 SinCos Hiperface encoder. We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days.

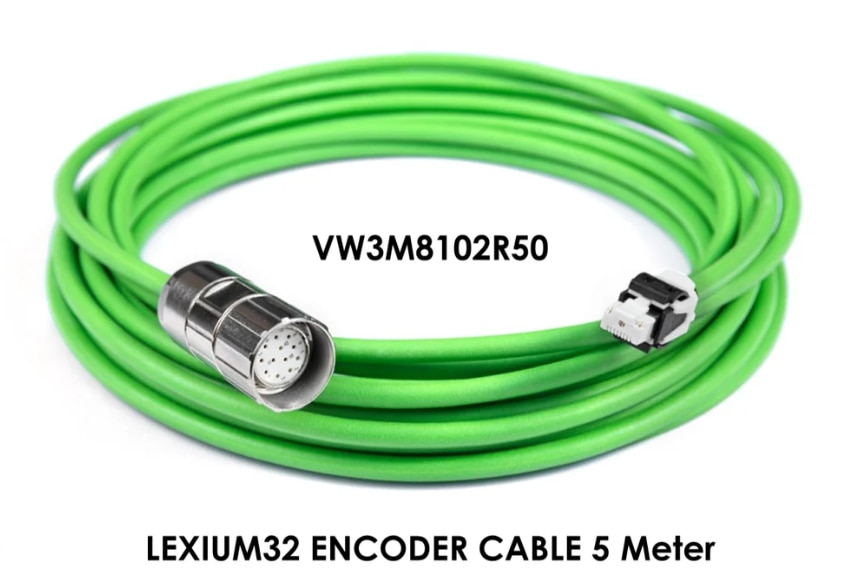

VW3M8102R50 Lexium32 Encoder Cable Cable Length 5 m Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M8102R50 Size 3x2x0.14 mm2 + 2x0.34 mm2 Enoceder Cable for LXM32 & BMH Motors Signal Cable for LXM32 & BMH Motors SinCos Hiperface encoder cordsets equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8 + 2 contacts (servo drive end) We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

VW3M8102R100 Lexium32 Encoder Cable Cable Length 10 m Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M8102R100 Type Encoder Cable Size 3x2x0.14 mm2 + 2x0.34 mm2 Enoceder Cable for LXM32 & BMH Motors Signal Cable for LXM32 & BMH Motors SinCos Hiperface encoder cordsets equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8 + 2 contacts (servo drive end) We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

VW3M8102R150 Lexium32 Encoder Cable Cable Length 15 m Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M8102R150 Type Encoder Cable Size 3x2x0.14 mm2 + 2x0.34 mm2 Enoceder Cable for LXM32 & BMH Motors Signal Cable for LXM32 & BMH Motors SinCos Hiperface encoder cordsets equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8 + 2 contacts (servo drive end) We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

VW3M8102R200 Lexium32 Encoder Cable Cable Length 20 m Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M8102R200 Type Encoder Cable Size 3x2x0.14 mm2 + 2x0.34 mm2 Enoceder Cable for LXM32 & BMH Motors Signal Cable for LXM32 & BMH Motors SinCos Hiperface encoder cordsets equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8 + 2 contacts (servo drive end) We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

VW3M8102R250 Lexium32 Encoder Cable Cable Length 25 m Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M8102R250 Type Encoder Cable Size 3x2x0.14 mm2 + 2x0.34 mm2 Enoceder Cable for LXM32 & BMH Motors Signal Cable for LXM32 & BMH Motors SinCos Hiperface encoder cordsets equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8 + 2 contacts (servo drive end) We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

VW3M8102R300 Lexium32 Encoder Cable Cable Length 30 m Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M8102R300 Type Encoder Cable Size 3x2x0.14 mm2 + 2x0.34 mm2 Enoceder Cable for LXM32 & BMH Motors Signal Cable for LXM32 & BMH Motors SinCos Hiperface encoder cordsets equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8 + 2 contacts (servo drive end) We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

VW3M5101R100 Lexium32 Power Cable Cable Length 10 m Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M5101R100 Type Power Cable Power Cable for LXM32 & BMH Motors Motor cable (4 x 1.5 mm2) + (2 x 1 mm2) shielded motor end 8-pin circular connector M23 other cable end open We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

VW3M5101R30 Lexium32 Power Cable Part Number VW3M5101R30 Type Power Cable Usage/Application BMH & LXM32 Length 3 Meter Size (4 x 1.5 mm2) + (2 x 1 mm2) Protection Type Shielded Power Cable for LXM32 & BMH Motors Motor cable (4 x 1.5 mm2) + (2 x 1 mm2) shielded motor end 8-pin circular connector M23 other cable end open We offer above articles from 1mtr to 100 mtr as per client requirement with leadtime of 1-2 days for any length and qty

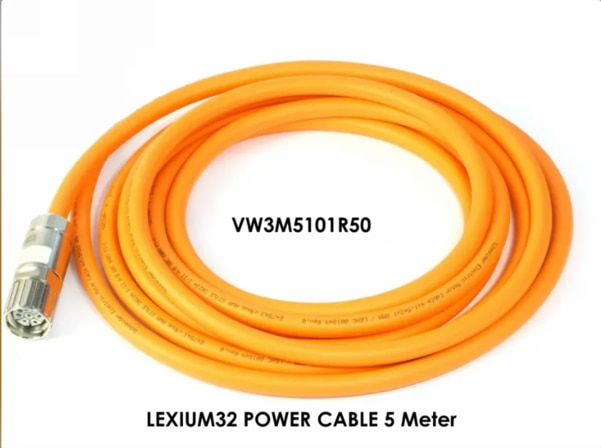

VW3M5101R50 Lexium32 Power Cable Protection Type Shielded Usage/Application BMH & LXM32 Part Number VW3M5101R50 Type Power Cable Length 5 Meter Size (4 x 1.5 mm2) + (2 x 1 mm2) Power Cable for LXM32 & BMH Motors Motor cable (4 x 1.5 mm2) + (2 x 1 mm2) shielded motor end 8-pin circular connector M23 other cable end open We offer above articles from 1mtr to 100 mtr as per client requirement with lead time of 1-2 days for any length and qty
